Single Lever Quick Action Hinged Steel Weathertight Door Marine Outfitting

  • 1
  • 2
  • 3

Place of Origin : China

Brand Name : Zhongyuan Marine Equipmen

Certification : CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate

Model Number : Standard or Customized

MOQ : 1 Unit

Price : Based on quotation

Packaging Details : Export standard pallet or customized packing

Delivery Time : Based on project requirements

Payment Terms : T/T, L/C

Supply Ability : Customized production based on project requirements

Standard : GB/T 3477

Material : Mild Steel, Stainless Steel, Aluminium

Test : Hose Test, Air Test, Chalk Test, as applicable

Dimension : Customized, As client’s drawing, As Standard

Application Type : Weathertight

Leaf Type : Single Leaf, Double Leaf, Single Skin

Application Location : Accommodation, Deck House, Forecastle, Bulkhead, Boundary

Open Type : Sliding, Hinged, Hand Wheel Quick Operate, Lever Operate, Dog Handle, etc.

Power resource : Pneumatic, Electric, Hydraulic, Manual

Closing Device : Anti-Piracy

Classification Certificates : Type Approval, EC MED Type Approval, CCS, NK, BV, ABS, DNV GL, LR, KR, IRS, RS, Etc

Contact Now

Single Lever Quick Action Hinged Steel Weathertight Door

Description:

Single lever quick action hinged steel weathertight door is Used for the doorway of superstructure above freeboard deck or deck house. It can be installed on the postion 1 and 2 according to loadline requirement.Hose test is to be carried our before delviery from the factory. IACS class certificates are available.

Main technical Specification:

  1. Standard: GB/T 3477
  2. Material: Mild Steel, Stainless Steel, Aluminium,
  3. Test: Hose Test, Air Test, Chalk Test, as applicable
  4. Dimension: Customized, As client’s drawing, As Standard
  5. Application Type: Weathertight,
  6. Leaf Type: Single Leaf, Double Leaf, Single Skin,
  7. Application Location: Accommodation, Deck House, Forecastle, Bulkhead, Boundary
  8. Open Type: Sliding, Hinged, Hand Wheel Quick Operate, Lever Operate, Dog Handle, etc.
  9. Power resource: Pneumatic, Electric, Hydraulic, Manual,
  10. Closing Device: Anti-Piracy
  11. Classification Certificates:Type Approval, EC MED Type Approval, CCS, NK, BV, ABS, DNV GL, LR, KR, IRS, RS, Etc.

Main Technical Parameters:

No. Nominal size
LxBxR100		 Cutout
L1 x B1 x R150		 Outline size
L2 x B2 x R200		 Leaf plate thickness
mm
1 1000x600 1100x700 1200x800 8
2 1200x600 1300x700 1400x800
3 1400x600 1500x 700 1600x800
4 1400x700 1500x800 1600x900
5 1500x600 1600x700 1700x800
6 1500x700 1600x800 1700x900
7 1600x600 1700x 700 1800x800
8 1600x700 1700x800 1800x900

Single Lever Quick Action Hinged Steel Weathertight Door Marine Outfitting

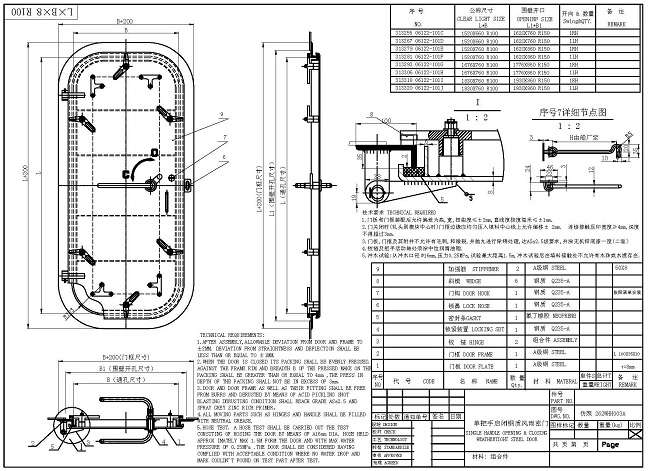

Drawing of Single Lever Quick Action Hinged Steel Weathertight Door Marine Outfitting

Single Lever Quick Action Hinged Steel Weathertight Door Marine Outfitting

Single Lever Quick Action Hinged Steel Weathertight Door Marine Outfitting
